13-3. Sample program

Next, the flow of the sample program that uses the backup library is shown in the flowchart.

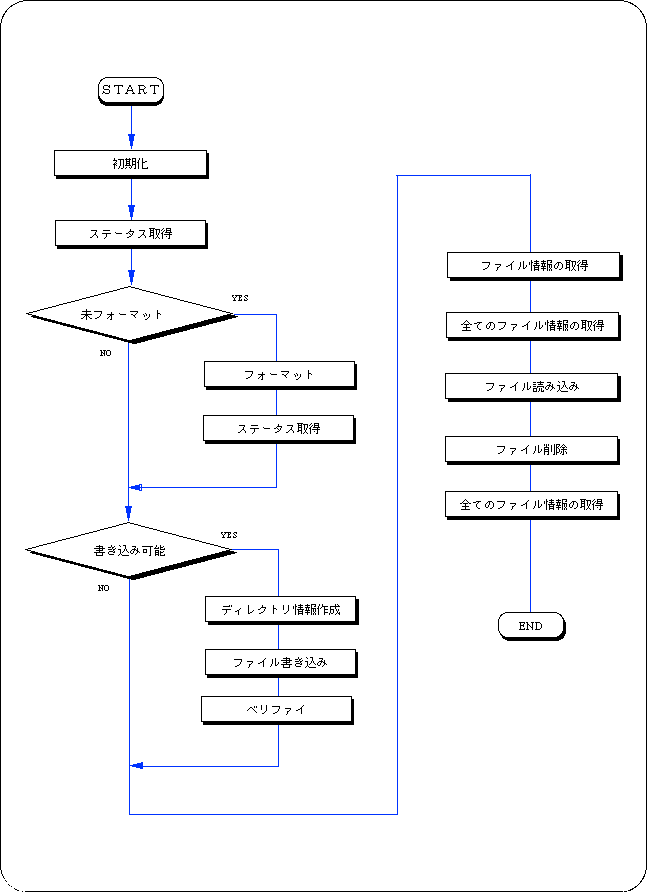

Flow 13-1 Sample program using backup library

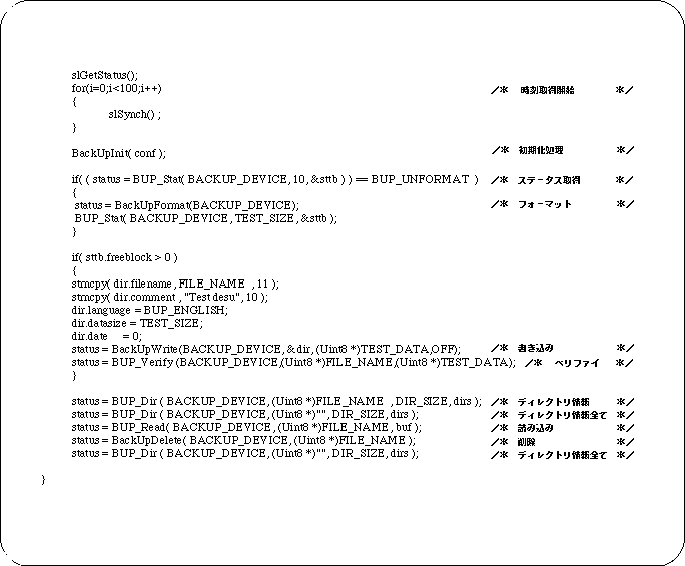

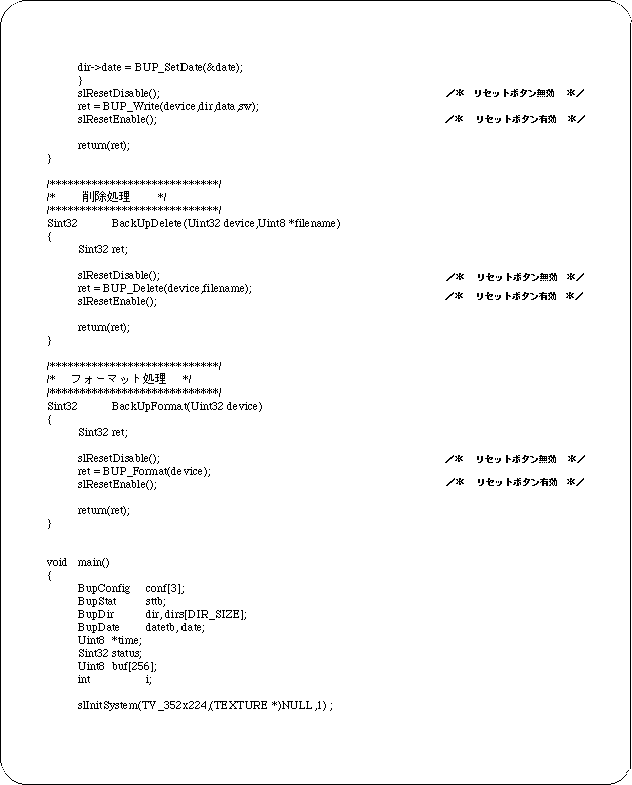

Listing 13-1 shows a sample program listing.

List 13-1 Sample program (continued)

List 13-1 Sample program (continued)

Note: Backup library function

Table 13-2 lists the functions used in the backup library.
Please refer to PROGRAMMER'S GUIDE VOL.1 for a detailed function reference.

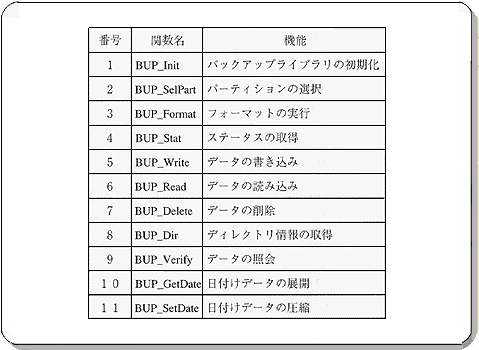

Table 13-2 Backup library functions
