Programmer’s Tutorial

About Sega 3D Game Library

Sega 3D game library (abbreviation: SGL) is a group of functions for 3D graphic control provided for Sega Saturn software developers. Each function in the library (especially each function in the calculation library) is an algorithm designed by a programmer who has mastered the processing capability of Saturn, so high-speed processing is possible.

This chapter explains the software development procedure using the SEGA 3D game library and notes on using the library.

1-1. Programming workflow

The flow of Sega Saturn software programming using SGL is shown below.

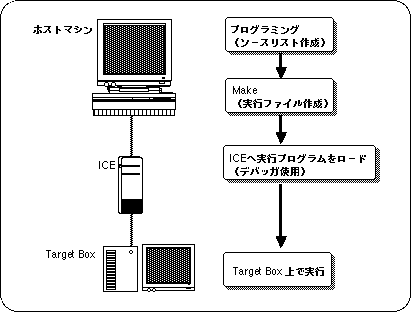

Figure 1-1 Programming workflow

• Host machine

  Programming, Compile , debugging, etc.

• Make

  Generates an executable file including compilation work.

• ICE

  Emulates the operation of the Sega Saturn main CPU SH2. By loading the execution program into the ICE, you can check the operation of the created program.

• Debugger

  Loads, executes, and debugs at the source level.

• Target box

  Can be connected to ICE and operates in the same way as Sega Saturn.

Caution
For details on how to use the ICE and debugger, see the respective manuals.

• HITACHI E7000 SH7604 emulator
• SEGA SH7604 E7000 Graphical User Interface Software
