Debugger startup / initial settings

The HITACHI E7000 ICE is controlled by software with a dedicated graphical user interface (GUI). This software is called "debugger" in this manual. The following describes how to start up and initialize this debugger.

1) Turn on the power of the ICE first and then the target (in the reverse order when turning off the power).

2) Creating a file for automation

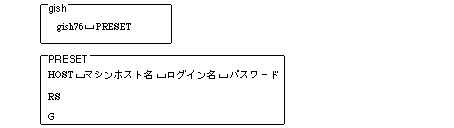

Create two files “gish” and “PRESET” in the current directory.

Depending on the settings of these files, the following tasks can be automated.
• Set HOST NAME, USER NAME, and PASSWORD in the “HOST dialog box”.
• Reset target Since
• gish is executed as a shell script, execute authority is set by chmod + x gish command.

3) Start the debugger
Enter "gish" on the host machine and return to start the debugger.
If the following message appears in the middle of startup and waits for input, click in the window to validate key input and return.

When the target is reset and the initial screen is displayed, click “STOP”.

4) Load initial program
Type “g 400” and click “STOP” when the screen disappears.

5) Development settings (disable interrupts)
From the [VIEW] menu, select “REGISTER” to display the “Register Dialog Box”.
Enter “000000f0” in the status register (SR) and click “ENTER”.

Caution
This development setting is for using ICE. It is not necessary to set in the software to be actually released.
