Sound Tutorial

Prepare the environment

This chapter explains how to connect the hardware to use Sega Sound Tool.

Sound production requires a Macintosh.
The following figure shows the equipment configuration with a focus on the SEGA sound tool.
If you use a commercially available tool such as AUDIOMEDIA II, the connection will be slightly different, but it will be omitted in this chapter.

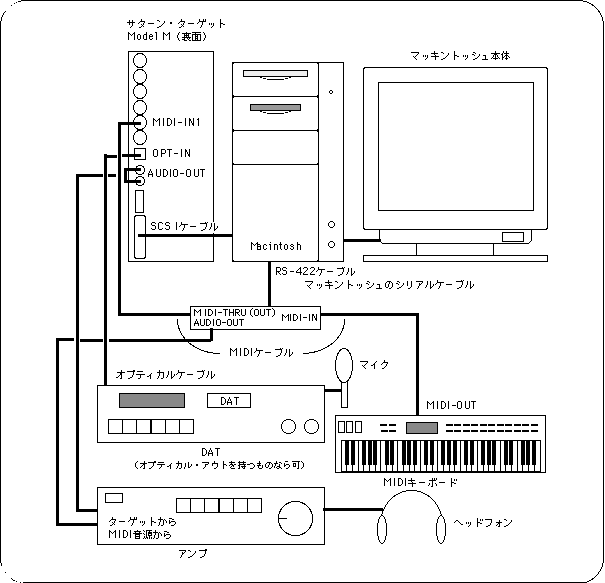

Figure 1-1 Equipment configuration when using Sega Sound Tool

Preparing the equipment

  1. You can create a song without a MIDI sound source, but it will be a lot of work, so we recommend using it.
  2. Use a MIDI interface for MIDI sound sources that do not have a connection to the Macintosh. In addition to DAT, MD and CD players can be connected to
  3. Digital In.
