3.3 Definition of track structure

one View table

Title Command specifications

Command Start track definition

Keyword Track

No 3.1

Format

Track type

parameters

trktype: Track type (MODE1, MODE2 or CDDA)

function

Start track definition.

one View table

Title Command specifications

Command End of track definition

Keyword EndTrack

No 3.2

Format

EndTrack

parameters

none

function

Finish track definition.

one View table

Title Command specifications

Command Definition of pre-gap

Keyword PreGap

No 3.3

Format

PreGap nsect

parameters

nsect: Number of output sectors in the gap area recorded at the beginning of the MODE2 track.

function

Outputs gap data for the specified number of sectors.

remarks

Normally, specify 150 sectors (2 seconds).

one View table

Title Command specifications

Command Definition of postgap

Keyword PostGap

No 3.4

Format

PostGap nsect

parameters

nsect: Number of output sectors in the gap area recorded at the end of MODE1 and MODE2 tracks.

function

Outputs gap data for the specified number of sectors.

remarks

Normally, specify 75 sectors (1 second).

one View table

Title Command specifications

Command Pose definition

Keyword Pause

No 3.5

Format

Pause nsect

parameters

nsect: Number of output sectors of the pause area recorded at the beginning of the CDDA track.

function

Outputs pose data for the specified number of sectors.

remarks

Normally, specify 150 sectors (2 seconds).

-Example-

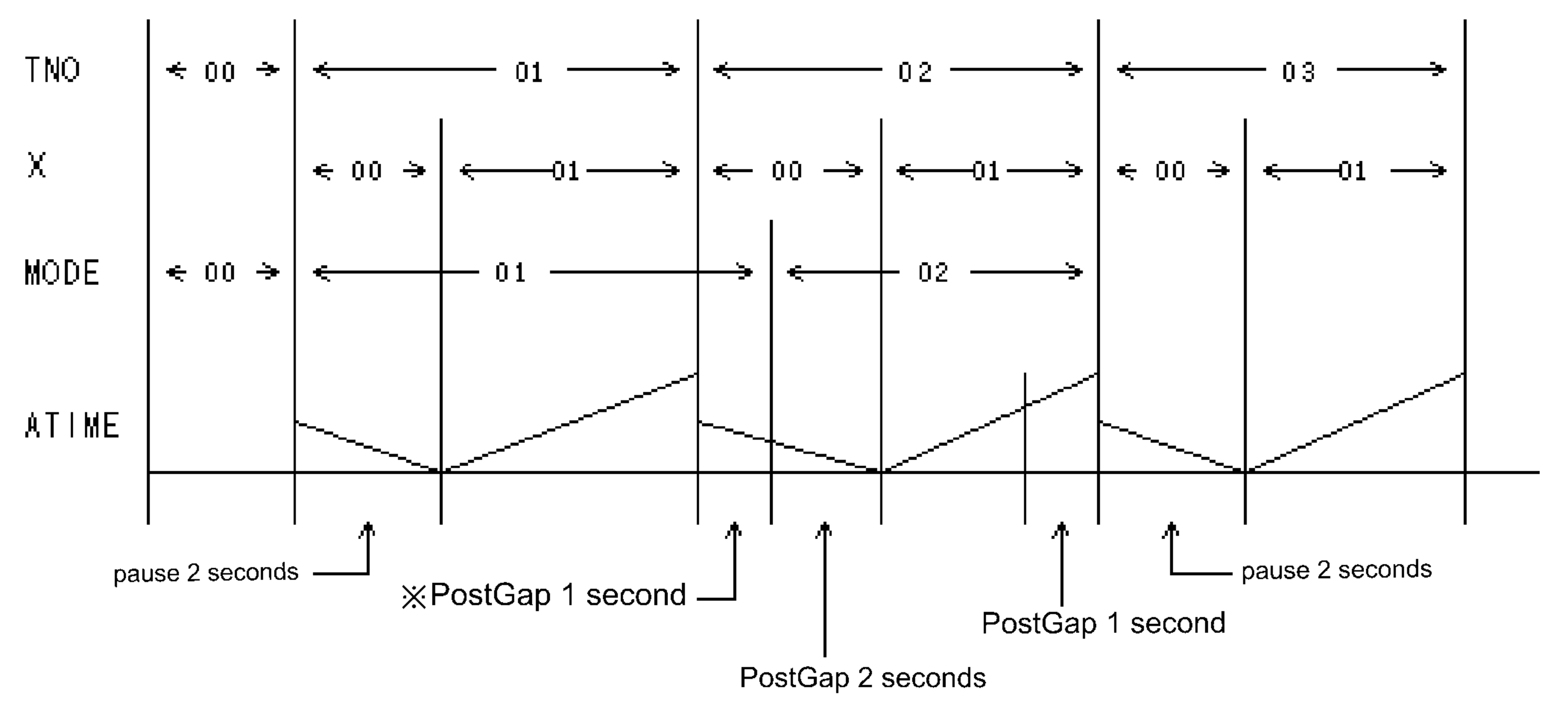

Example of specifying PreGap, PostGap, and Pause (for disk type SEMIXA)

     Track  MODE1      ; Track number TNO=01
      ：
      PostGap 75      ; 1 second or more
     EndTrack
          Track  MODE2      ; Track number TNO=02
      PreGap  150     ; 2 seconds or more
      ：
      PostGap 75      ; 1 second or more
     EndTrack
          Track  CDDA       ; Track number TNO=03
      Pause   150     ; 2 seconds or more
      ：
     EndTrack

*

In YELLOW BOOK, the pre-gap is divided into two parts. The first part (more than 1 second) is encoded as MODE1 according to the definition of the previous track, and the second part (more than 2 seconds) is encoded as MODE2. It is stipulated that
In this script, the PostGap command is interpreted as the "first part of the pre-gap" and the PreGap command is interpreted as the "second part of the pre-gap."
