Designer’s Tutorial

Modeling practice: Elementary
“TV monitor”

Practice the modeling method of the polygon model of the soft image by following the actual production process. The theme is "TV monitor".

Notes on description
In the text, [] indicates a menu command, and [] indicates a hierarchical (sub) menu.

Mode settings

Set the mode to “Model” (Figure 2-1).

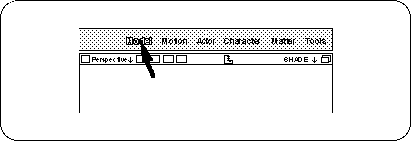

Figure 2-1 Mode selection (Model)

First, we will prepare a cube that will form the basis of the shape of the TV monitor.
