3-4. Finishing modeling

How to make a polygon face

Shape up the car.
First, switch to Multi mode and select all four objects “cyl”, “cyl2”, “cyl3”, “cyl4” on the schematic screen (enclose with Spacebar + Left Mouse Button ).

[Display] → [Hide] → [Toggle Selection]
Please run the. I think all the tires are hidden (Figure 3-53).
Switch back from Multi mode to Single mode and select “cube” (body).

[Info] → [Selection]
Change from “Automatic Discontinuity” to “Faceted”.

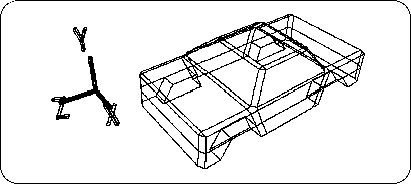

Figure 3-53 Hide the tire

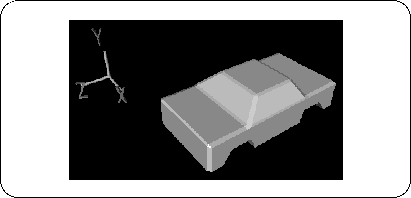

Figure 3-54 Shade display screen

First of all, make this because there is no bottom.
First, look at the figure below (Figure 3-55).

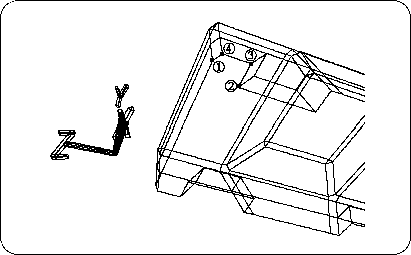

Figure 3-55 Making the bottom of the car body

Make a polygon in the numbered place.
[Mesh] → [Polygon]
Select
