3-2. Creating a tire room

Create concave surface

[Mesh] → [Vertex] → Mouse middle button (Add middle vertex)
Then, hit the middle points (16 in total) on each line segment as shown below (Figure 3-20).

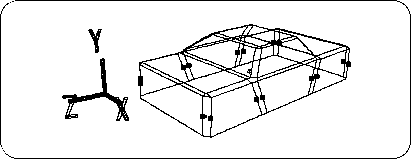

Figure 3-20 Hitting a midpoint on each line segment

[Mesh] → [Edge] → Left mouse button (Add ONE edge)
Connect the midpoints (Figure 3-21).

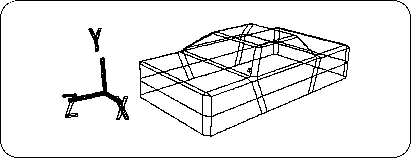

Figure 3-21 Connecting the midpoints

[Mesh] → [Vertex] → Mouse middle button (Add middle vertex)
Then hit the dots as shown below (Figure 3-22). (Do the same for front, back, left and right)

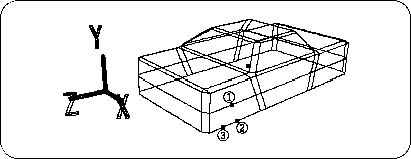

Figure 3-22 Hit the middle point in the tire room

point
